Battery Powered Wireless Beam With Solar Panel

Overview of the Battery Powered Wireless Beam With Solar Panel

The Battery Powered Wireless Beam With Solar Panel has a 100m range. Using the wireless beams in conjunction with the GSM Alarm Pro 20 Panel or other Alarm Systems using 433mhz 1527 coding, customers can create a standalone alarm. Therefore, by linking the wireless beams to an alarm panel, such as the Alarm Pro, the broken invisible beams will alert the customer to the problem. Resulting in immediately response to the problem from the customer. Please check our ebay store  for other alarm accessories.

Product Information

• Wireless infrared beam detector
• The wireless beams use of solar energy to power the beams.
• They have a built-in 3.7V lithium battery for when there is weak solar power.
• The wireless beams work defense distance of 100M
• They have an anti-white, pest control function
• There is wireless transmission distance of 200 meters in an open area
• The detection Mode: 2 beams are intercepted simultaneously
• Source:IR LED
• Inductive Speed: 50m/Sec
• Alarm Output: Wireless alarm signal
• Power Supply Voltage: Solar panel, with a built in 3.7V lithium battery (Under normal circumstances, the battery can be used for 2 years, which can supply power for 12 hours without any light)
• Current Consumption light projector and lighter receiverless than equal 04.mA
• Wireless transmission Frequency: 433MHZ
• Wireless transmission distance: 300m in open area
• Operating temp: -10°C~55°C
• Solar panel current output: 1600L /Under sunshine: greater than equal 1Ma (About 2000 2000Lx under the rainy day)
• Optical axis adjustable Angle (Horizontal): 180º (+/-90º)
• Optical axis adjustable Angle (vertical): 20º (+/-10º)
• Dew and Frost Countermeasure: Ultrasonic Wave Structure
• Distance: 100m
• Frequency: 433MHZ, 2262
• Work Theory: Redio Frequency
• Shell Material: PC
• Feature: Waterproof Durable
• Power: Solar Power
• Beams: 2
• Colour: Black Shell & Green Core
• Material: Plastic
• Size: 27.2 x 7.4 x 9.8 cm

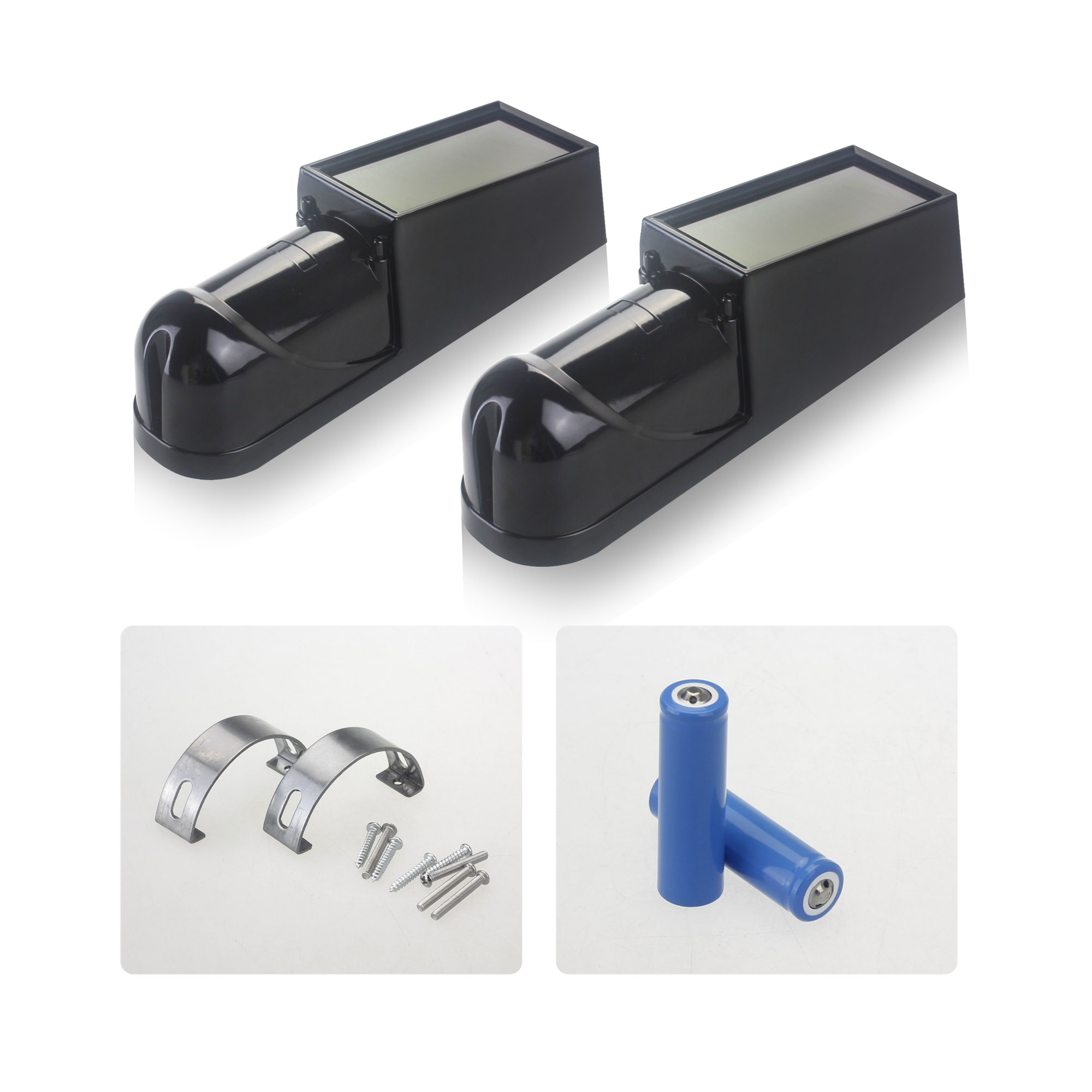

• Package Contents: 1 x pair sensor 1 x use manual
• Please Note – only the above items will be within the package. Note: Light shooting and different displays may cause the color of the item in the picture to be a little different from the real thing. The measurement allowed error is +/- 1-3cm.
