4G GSM Auto Dialler & Speech Module – 2G & 4G

4G GSM Auto Dialler & Speech Module – 2G & 4G

£140.00 Excl. VAT

4G GSM Auto Dialler with Speech works with all alarm panels as well as hundreds of other applications. Connect it to your alarm for a recorded voice message to be played when triggered to upto 5 user numbers.

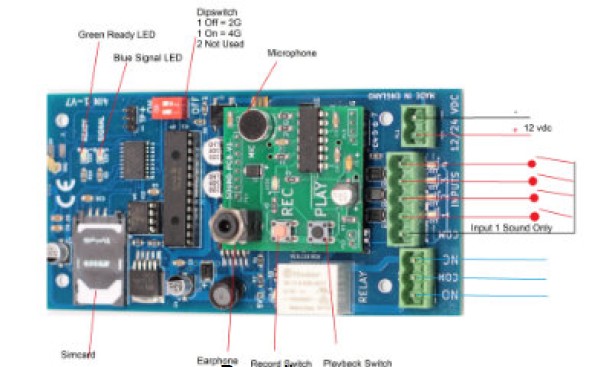

4 Inputs which can accept a positive or negative trigger independently, one relay output , text and call alerts to 5 users- available 4G model which also can work on 2G frequency

● GSM Frequency: Quadband Frequency 850/900/1800/1900
● LTE Band : B1/B3/B5/B7/B8/B20
● Power Supply Voltage: 9-24 vold DC – 1 Amp Max
● Current Used in Standby Mode: 60mA Max
● IP65 Rated Enclosure for Outside Installation
● 4 Inputs Negative Triggered
● 1 Speech Input with Recorded message (15 secs)
● 5 User Numbers
● 8 Amp Relay Output
● Micro Simcard
● No Landline Required
● Dimensions: L150 x W90 x H45mm
● Dimensions PCB Only: L125 x W67mm
● Sim Active Function
● Operating Temperature: -10…+40°C
● Programmed by Text Message
● Text to Test Signal Strength



Overview of the GSM Auto Dialler Speech

Customers can attach the GSM Auto Diallers to many electronic devices within homes, work, gardens or wherever you need it. The GSM Auto Dialler will alert the customer using GSM technology by sending a text message or a phone call. This alerts the customer to any problems wherever they are in the world! Customers can use all four independent inputs and the one output to allow them to send a command back to the Auto Dialler to reactivate or switch off the attached device. Furthermore, with the Auto Dialler Speech customers can record a message so that when then alarm is triggered it will send a phone call to the user alerting them to a problem. Up to five users can be added to the unit’s memory of who will be called in sequence when the alarm is triggered.

For Example:

Customers are alerted in sequence by phone call when the attached alarm is triggered. If the first person answers the call they can turn acknowledge the call by pressing the hash key. This then stops all further calls to those in the sequence. If, however, the call is not answered by any of the five users, a text message reading ‘Alarm Not Acknowledged’ will be sent to all five recipients. Therefore, alerting all users that the alarm was triggered but no-one had acknowledged it.

What are the GSM Auto Diallers compatibe with?

The GSM Auto Dialler Speech is compatible with all alarm systems. Simply connect the bell output of your alarm system to the input of either the 2G, 3G or 4G GSM Auto Dialler. Enabling customers to be alerted by text and/or phone call when the attached alarm is triggered. To power the auto dialler customers can connect it with the battery supply of the alarm box. Alternatively an external 12v source can be used.

Customers have purchased the Auto Dialler to connect to various systems including:

  • Security alarm system applications.
  • Supervision and monitoring alarm systems.
  • Automatic monitoring system.
  • Vending machines security protection.
  • Pumping stations; tanks, oil or water levels.
  • Buildings and real estate.
  • Weather stations.
  • River monitoring and flood control.
  • Fridges/Fish Tanks.
  • Farming equipment and security.

You can also connect the Auto Dialler to accessories such as Beam Alarms, PIR Sensors and the Siren to create an alarm.

Why choose the GSM Auto Dialler

By using the quadband frequency it enables the GSM Auto Diallers to be set apart from other models on the market. Furthermore, by enabling them to use either 2G or 3G or 4G it ensures they are usable worldwide. Subsequently, our overseas customers frequently purchase these from all over Europe, USA and Australia with excellent feedback. The GSM Auto Diallers come in an IP65 rated enclosure. Not only does this allow for indoor installation but also outside. Similarly, as we test all devices in high heat and freezing weather conditions this provides customers with reliable products.

As we manufacture these models ourselves we can offer modifications to the units to meet your requirements. Therefore, if you need something different from this listing please contact us directly. Most of the time we can implement a simple program change at no extra cost.

Furthermore, we are so confident in our products reliability and durability that we now offer a two year product warranty and will replace any faulty models in that timescale.

For more information you can view the manual below

Auto Dialler - Speech
